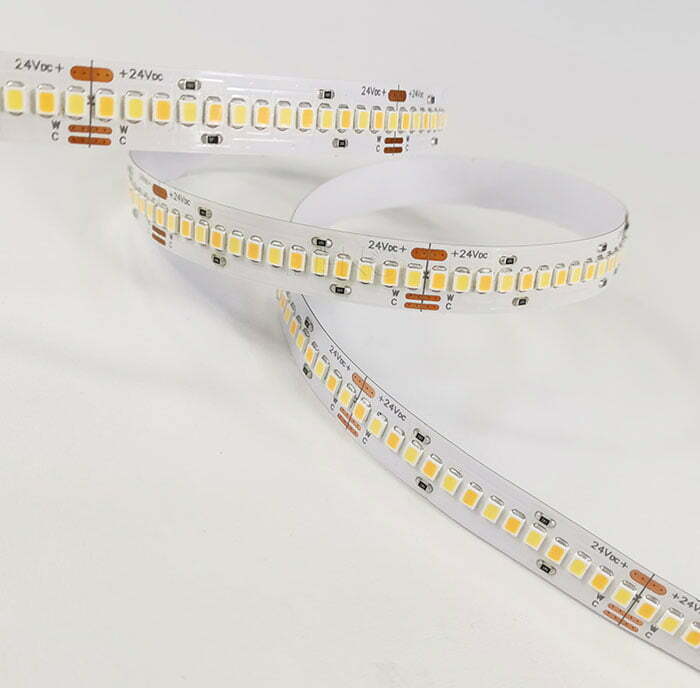

LED STRIP 24 2835 240 TUNABLE LED linear light by Arcade Lighting

LED STRIP 24 2835 240 TUNABLE 18W LED Linear Light · Arcade Lighting

Available sizes

Application areas: Office buildings,Retail,Supermarkets,Hospitality,Library
Item Code Wattage Beam Angle Luminous Efficacy Lumen
LED STRIP 24 2835 240 TUNABLE 18W 120° 90 Lumens / Watt 1620 / 1530 / 1440
Full Specifications

Electrical

Wattage 18W
Input Voltage 24VDC

Light Output

Delivered Lumens 1620 / 1530 / 1440
Luminaire Flux 1620 / 1530 / 1440
Luminous Efficacy 90 Lumens / Watt
Colour Temperature (K) 6000 / 4000 / 3000
CRI (Ra) 80
Beam Angle 120°
UGR <22
Tunable White On Request
Illumination Mode Direct Lighting

LED & Thermal

LED Make Bridgelux
LED Binning 5 Step MacAdam
LED Life (L70) 45,000 HRS

Construction

Environment Indoor
Installation SURFACE
Swivel No
Outside Size (mm) 5000x10x3
LED STRIP 24 2835 240 TUNABLE photometric light distribution diagram
Photometric distribution
Download Datasheet/TDS
