Application areas:
Office buildings,Retail,Supermarkets,Hospitality,Library
| Item Code |
Wattage |
Beam Angle |
Luminous Efficacy |
Lumen |
Surface Finish |
| LASER LINE RECESS 30 |
30W |
24°,40° |
130 Lumens / Watt |
3900 / 3750 / 3600 |
White/Black/Custom Powder Coated |
Full Specifications
Electrical
| Wattage |
30W |
| Input Voltage |
220 TO 240 Vac |
| Power Factor |
>0.95 |
| THD |
<10% |
| Dimming |
Phase / Analog / Dali / RF / APP |
| Driver Protection |
OVP,Short Circuit,Surge |
| Driver Mounting |
Remote |
| Emergency Backup |
On Request |
Light Output
| Delivered Lumens |
3900 / 3750 / 3600 |
| Luminaire Flux |
4200 / 4050 / 3900 |
| Luminous Efficacy |
130 Lumens / Watt |
| Colour Temperature (K) |
6000 / 4000 / 3000 |
| CRI (Ra) |
80 / 90 |
| Beam Angle |
24°,40° |
| UGR |
<16 |
| Tunable White |
On Request |
| Illumination Mode |
Direct Lighting |
LED & Thermal
| LED Make |
Bridgelux,Osram,Cree |
| LED Binning |
3 Step MacAdam |
| LED Life (L70) |
45,000 HRS |
| Heat Sink |
Aluminium |
| Cooling |
Passive |
Construction
| Housing |
Extruded Aluminium |
| Lens / Diffuser |
High Transmission PC Lens |
| Reflector |
PC High Purity Metallised |
| Surface Finish |
White/Black/Custom Powder Coated |
| IP Rating |
IP30 |
| Environment |
Indoor |
| Installation |
Recessed |
| Swivel |
No |
| Outside Size (mm) |
1209x47x46 |
| Cut-out Size (mm) |
1201x37x46 |

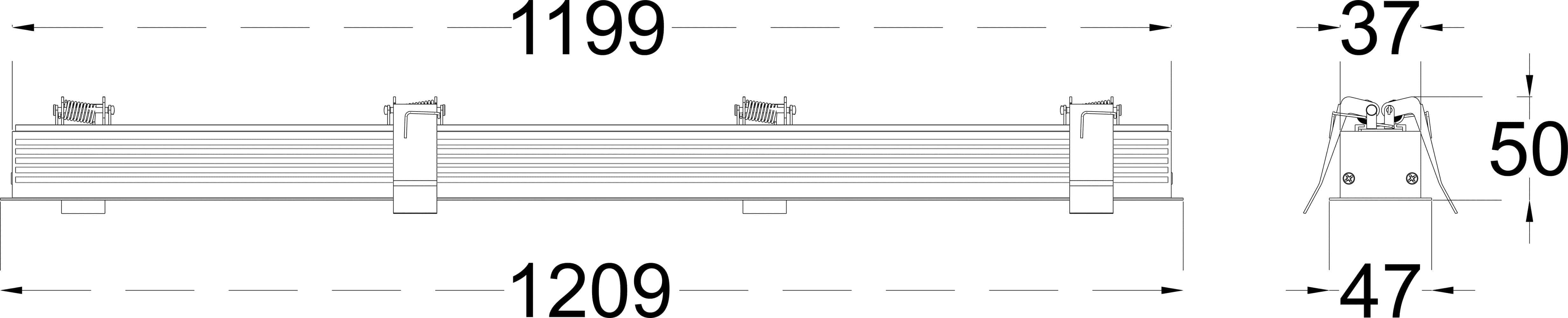

Dimensions (mm)
Photometric distribution
