Application areas:
Sports facilities, Medical applications,Industrial buildings,Hospitality,Street & Urban,liberar
| Item Code |
Wattage |
Beam Angle |
Luminous Efficacy |
Lumen |
Surface Finish |
| CLEAN 36 |
36W |
110° |
100 Lumens / Watt |
3600 / 3420 / 3240 |
White Powder Coated |
Full Specifications
Electrical
| Wattage |
36W |
| Input Voltage |
220 TO 240 Vac |
| Power Factor |
>0.95 |
| THD |
<10% |
| Dimming |
Phase / Analog / Dali / RF / APP |
| Driver Protection |
OVP,Short Circuit,Surge |
| Driver Mounting |
Remote |
| Emergency Backup |
On Request |
Light Output
| Delivered Lumens |
3600 / 3420 / 3240 |
| Luminaire Flux |
5040 / 4860 / 4680 |
| Luminous Efficacy |
100 Lumens / Watt |
| Colour Temperature (K) |
6000 / 4000 / 3000 |
| CRI (Ra) |
80 / 90 |
| Beam Angle |
110° |
| UGR |
<22 |
| Tunable White |
On Request |
| Illumination Mode |
Indirect Lighting |
LED & Thermal
| LED Make |
Bridgelux |
| LED Binning |
3 Step MacAdam |
| LED Life (L70) |
45,000 HRS |
| Heat Sink |
Aluminium |
| Cooling |
Passive |
Construction
| Housing |
Crca Sheet |
| Lens / Diffuser |
High Transmission PS |
| Surface Finish |
White Powder Coated |
| IP Rating |
IP65 |
| Environment |
Indoor |
| Installation |
Recessed |
| Swivel |
No |
| Outside Size (mm) |
595x595x70 |
| Cut-out Size (mm) |
570x570x70 |

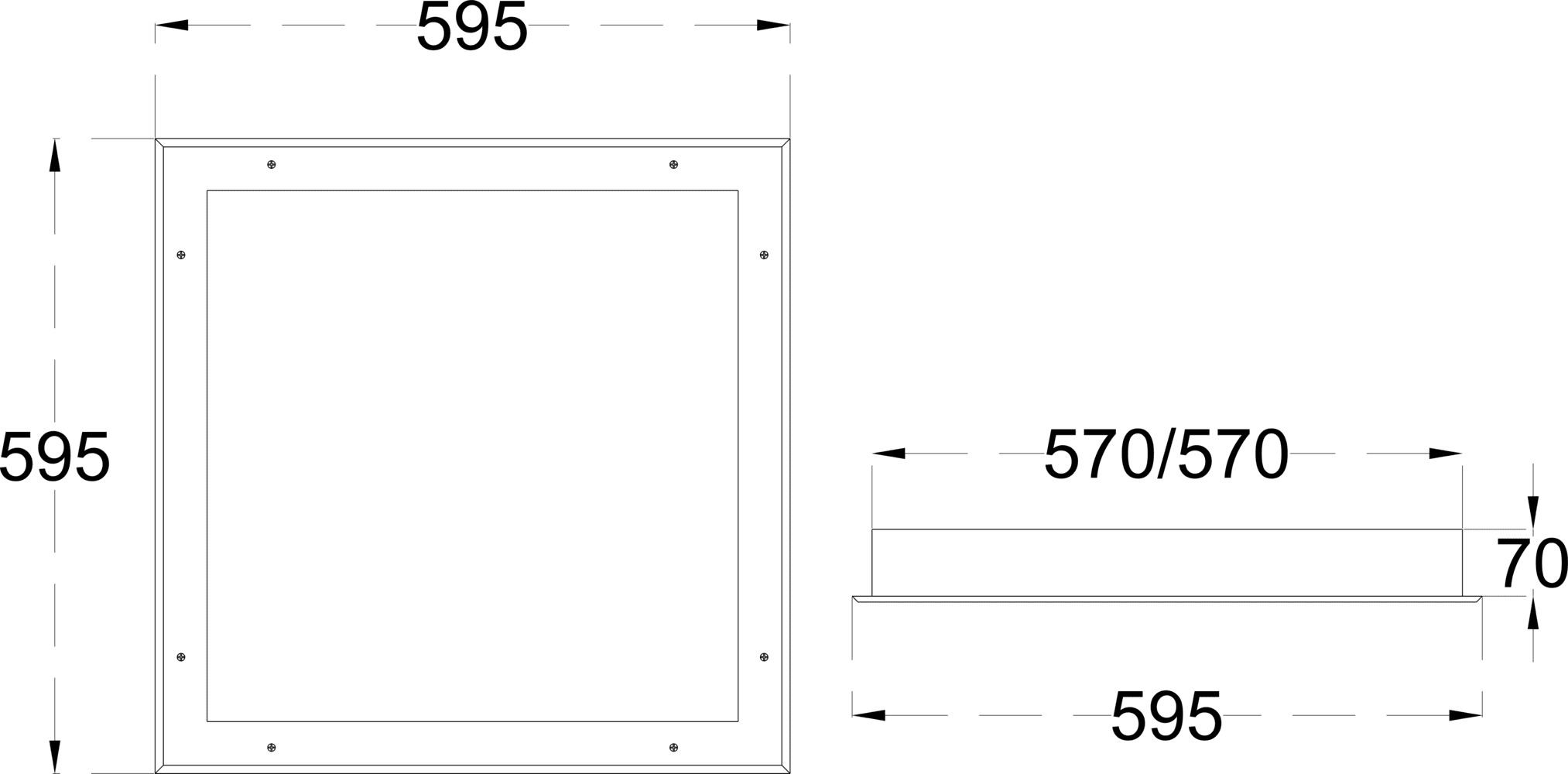

Dimensions (mm)
Photometric distribution
