Application areas:
Residential,Office buildings,Retail,Sports facilities,Studio, Stage,Supermarkets,Library
| Item Code |
Wattage |
Beam Angle |
Luminous Efficacy |
Lumen |
Surface Finish |
| BULLET TRACK 35 |
35W |
24°,36°,60° |
115 Lumens / Watt |
4025 / 3850 / 3675 |
White/Black/Custom Powder Coated |
Full Specifications
Electrical
| Wattage |
35W |
| Input Voltage |
220 TO 240 Vac |
| Power Factor |
>0.95 |
| THD |
<10% |
| Dimming |
Phase / Analog / Dali / RF / APP |
| Driver Protection |
OVP,Short Circuit,Surge |
| Driver Mounting |
Remote |
| Emergency Backup |
On Request |
Light Output
| Delivered Lumens |
4025 / 3850 / 3675 |
| Luminaire Flux |
5600 / 5425 / 5250 |
| Luminous Efficacy |
115 Lumens / Watt |
| Colour Temperature (K) |
6000 / 4000 / 3000 |
| CRI (Ra) |
80 / 90 |
| Beam Angle |
24°,36°,60° |
| UGR |
<19 |
| Tunable White |
On Request |
| Illumination Mode |
Direct Lighting |
LED & Thermal
| LED Make |
Bridgelux |
| LED Binning |
3 Step MacAdam |
| LED Life (L70) |
40,000 HRS |
| Heat Sink |
Aluminium |
| Cooling |
Passive |
Construction
| Housing |
Die Cast Aluminium |
| Lens / Diffuser |
High Transmission PS |
| Reflector |
PC High Purity Metallised |
| Surface Finish |
White/Black/Custom Powder Coated |
| IP Rating |
IP40 |
| Environment |
Indoor |
| Installation |
Recessed |
| Swivel |
Yes |
| Outside Size (mm) |
90x115 |

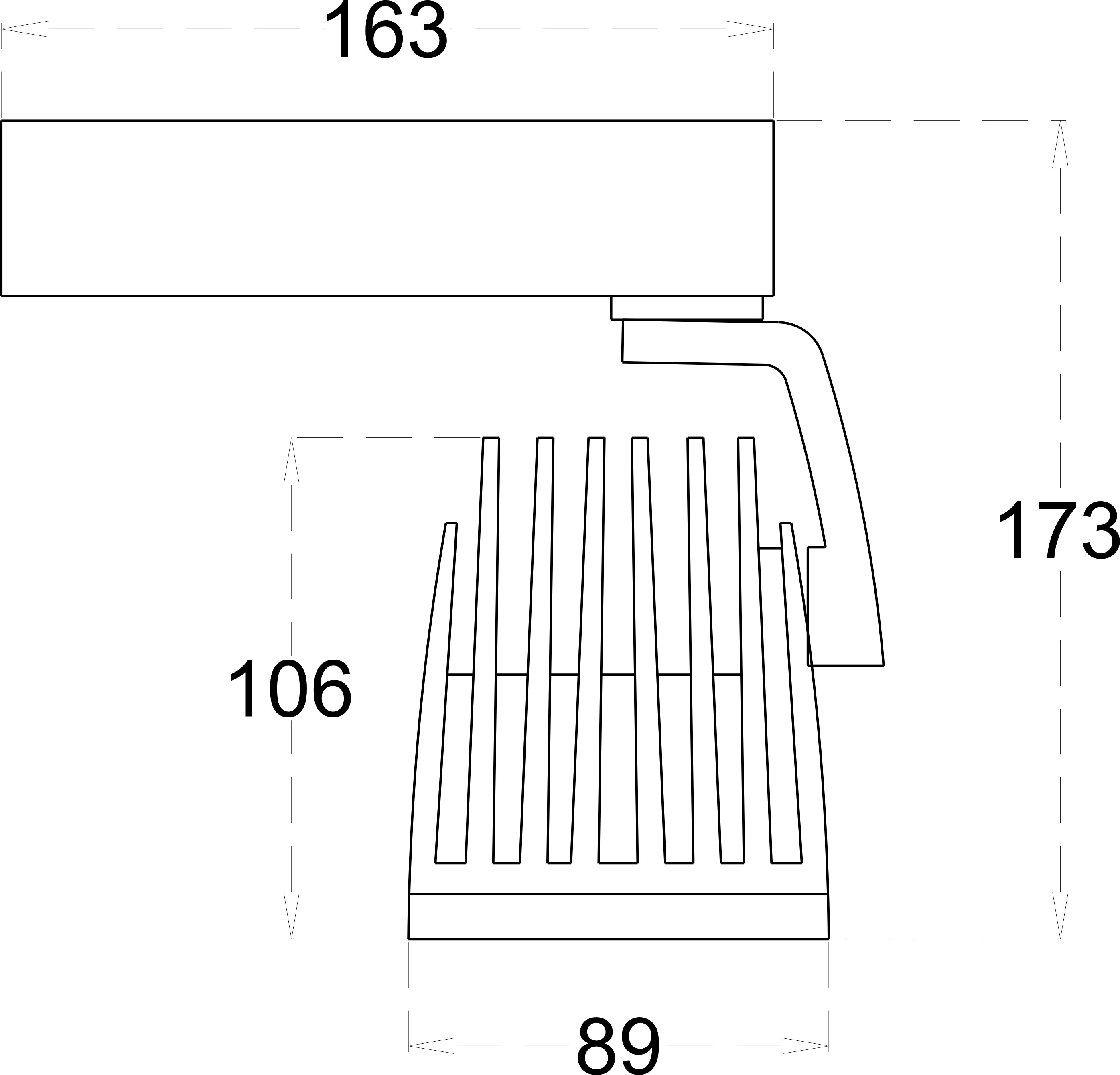

Dimensions (mm)
Photometric distribution
